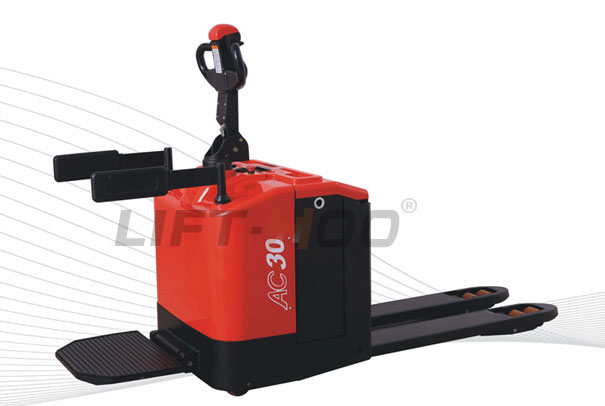

CBD30-TD
發布時間：2013/01/09
| 性能 | Characteristics | |||
| 1 | 型號 | Model | CBD30(460) | |
| 2 | 額定荷載 | Capacity | Q (kg) | 3000 |
| 3 | 動力形式 | Power | 全電動(Full-Electric) | |
| 4 | 操作方式 | Operation type | 站駕(Rider) | |
| 5 | 載荷中心距 | Load center | c(mm) | 600 |
| 6 | 軸距 | Wheel base | y(mm) | 1460/1510 |
| 車輪 | Wheels | |||
| 7 | 輪子類型 | Wheel type | PU | |
| 8 | 輪子數量（驅動輪/平衡輪/承重輪） | Wheels(Drive/Balance/Load) | 1D+2B+4L | |
| 尺寸 | Demension | |||
| 9 | 全高（含操縱手柄） | Overall height | h14 (mm) | 1455 |
| 10 | 全長（踏板收起） | Overall length | l1 (mm) | 1910/1960 |
| 11 | 車體寬度 | Rear body width | b1 (mm) | 790 |
| 12 | 最大起升行程 | Lift height | h3(mm) | 120 |
| 13 | 貨叉最低高度 | Lowered fork height | h13 (mm) | 85 |
| 14 | 貨叉厚度 | Fork thickness | s(mm) | 55 |
| 15 | 貨叉寬度 | Fork width | e(mm) | 185 |
| 16 | 貨叉長度 | Fork length | L(mm) | 1150/1200 |
| 17 | 貨叉外側間距 | Overall fork width | b5 (mm) | 540/685 |
| 18 | 最小轉彎半徑，踏板收起/放下 | Minimum turning radios | Wa(mm) | 1465/2140 |
| 19 | 最小直角堆垛通道寬度，踏板收起/放下（托盤800x1200，1200沿貨叉放置，間隙200） | Minilum aisle width, (800 x 1200mm pallet,1200mm face along forks | Ast (mm) | 2140/2815 |
| 20 | 最小直角堆垛通道寬度，踏板收起/放下（托盤1000x1200，1200沿貨叉放置，間隙200） | Minilum aisle width, (1000 x 1200mm pallet,1200mm face along forks | Ast (mm) | 2225/2900 |
| 性能 | Characteristics | |||
| 21 | 行駛速度，滿載/空載 | Travel speed,(laden/unladen) | km/h | 6.0/6.0 |
| 22 | 起升速度，滿載/空載 | Lift speed,(laden/unladen) | mm/s | 40/45 |
| 23 | 下降速度，滿載/空載 | Lower speed,(laden/unladen) | mm/s | 35/20 |
| 24 | 最大爬坡能力，滿載/空載 | Gradaability,(laden/unladen) | % | 5/7 |
| 25 | 制動方式 | Brake |
電磁 /再生 Electromagnetic/Regenerative | |
| 電機 | Motor | |||
| 26 | 驅動電機功率 | Drive motor | kW | 1.5 |
| 27 | 起升電機功率 | Drive motor | kW | 2 |
| 28 | 蓄電池電壓/容量 | Battery voltage/capacity | V/ Ah | 24/270 |
| 重量 | Weight | |||
| 29 | 蓄電池重量 | Battery | kg | 252 |
| 30 | 自重（包含蓄電池） | Service weight with battery | kg | 854 |
